Damage to Charles Leclerc’s car, Ferrari SF21
1/.18th
Photo by: Charles Coates / Motorsport Images
Due to the crash damage done by Charles Leclerc, we were able to get a great view of the underside of the front wing of the Ferrari SF21.

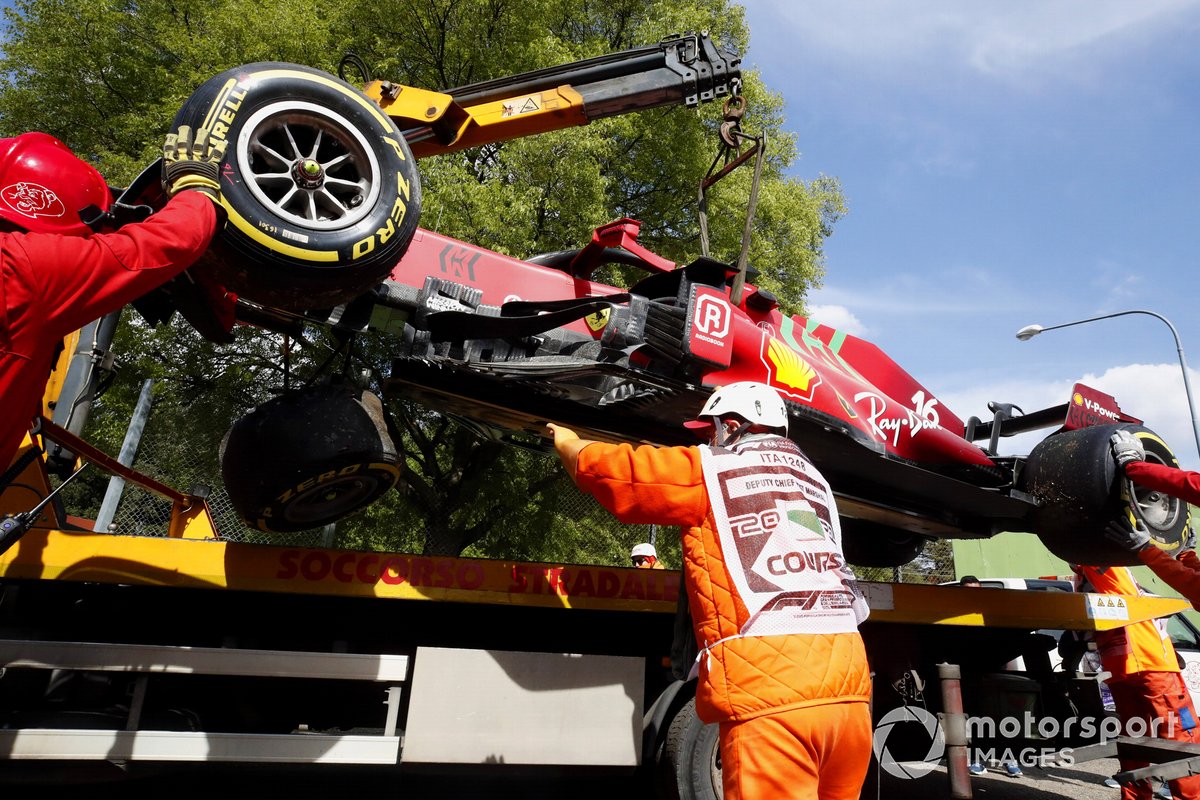

Charles Leclerc’s car, Ferrari SF21, is loaded onto a truck
2/.18th
Photo by: Charles Coates / Motorsport Images
Details of the underside of the SF21 were also revealed when the car was lifted onto the recovery truck.

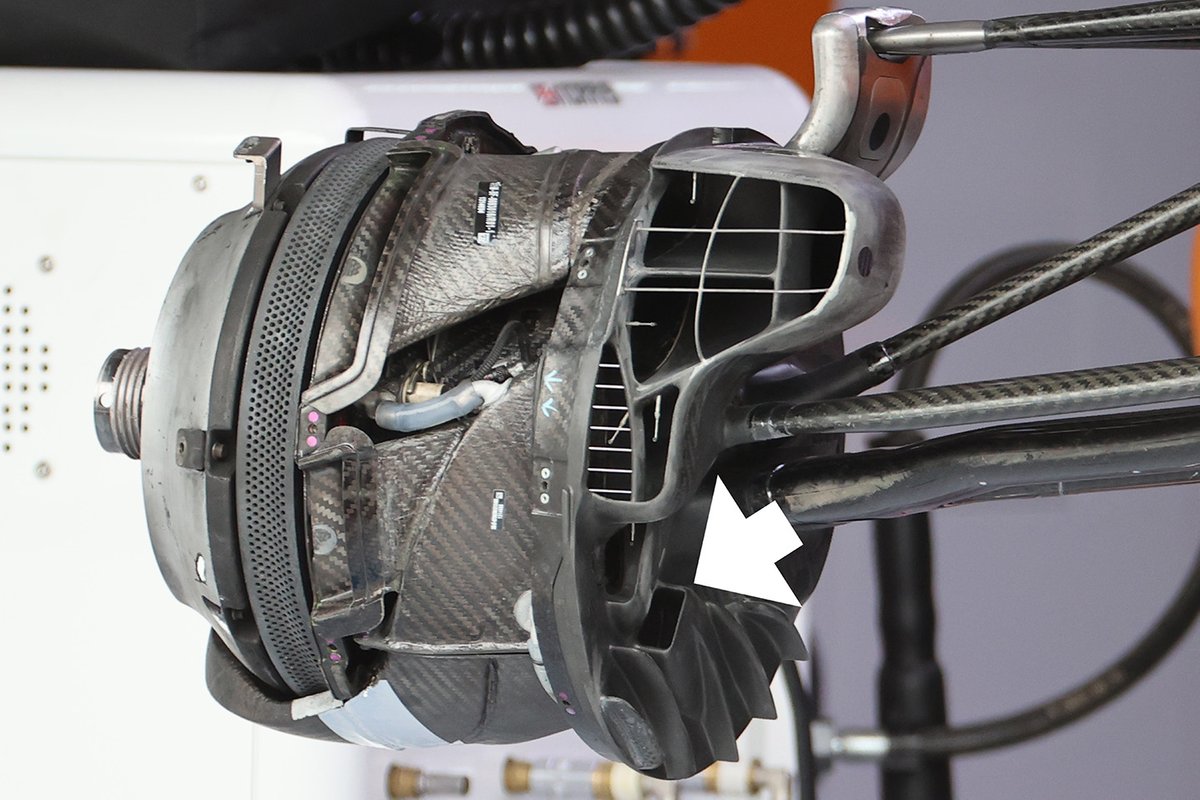

McLaren MCL35M brake duct detail
3/.18th
Photo by: Giorgio Piola
McLaren’s front brake duct assembly has two new intakes this season under a series of fins that help direct airflow through the assembly for an aerodynamic gain. It’s a similar arrangement to Mercedes last season, but McLaren has now reversed its brake line shape for a similar effect.

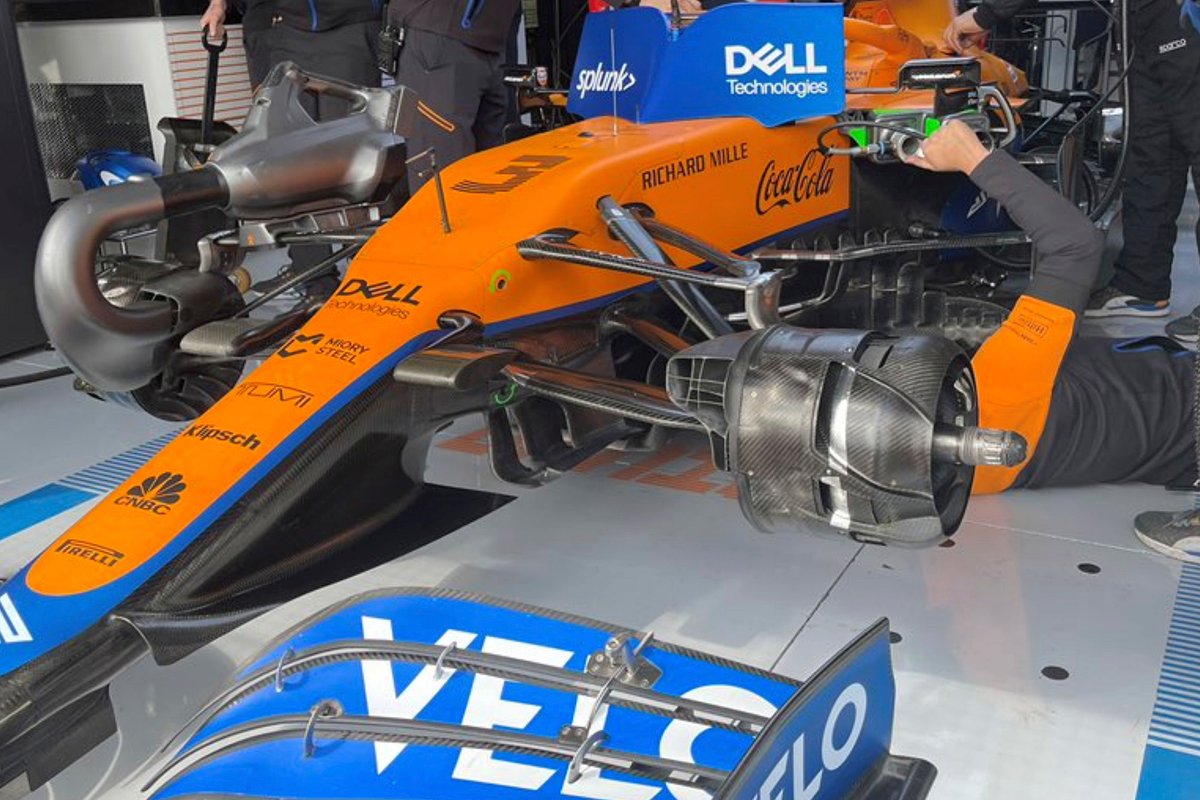

McLaren MCL35M front brake duct
4th/.18th
Photo by: McLaren
A shot of the “cake pan” of the MCL35M shows how the team placed various channels and outlets in its design to enhance the aerodynamic effect it can have.

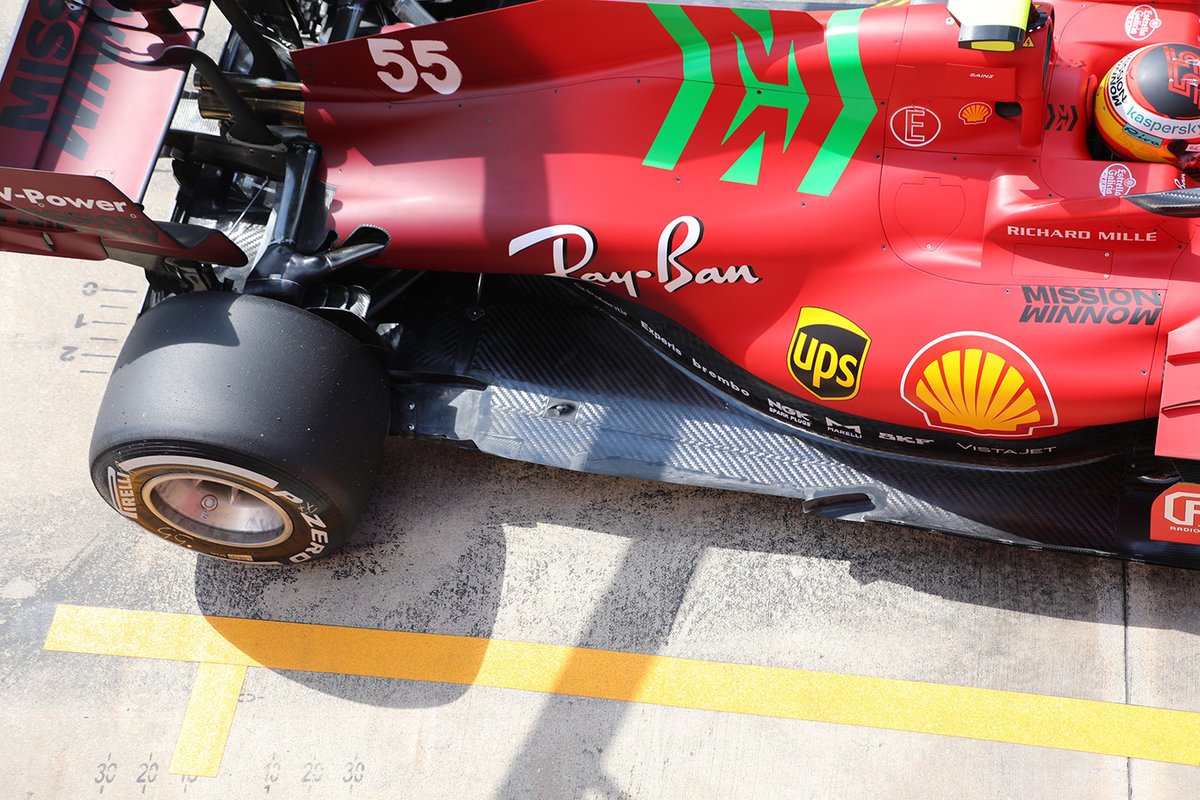

Ferrari SF21 floor detail
5/.18th
Photo by: Giorgio Piola
Ferrari tried a new flooring during free practice that included the Z-shaped cutout that some rivals used during the opening stages of the season. The cutout is paired with a new strake while the three fins have been removed halfway up the bottom.

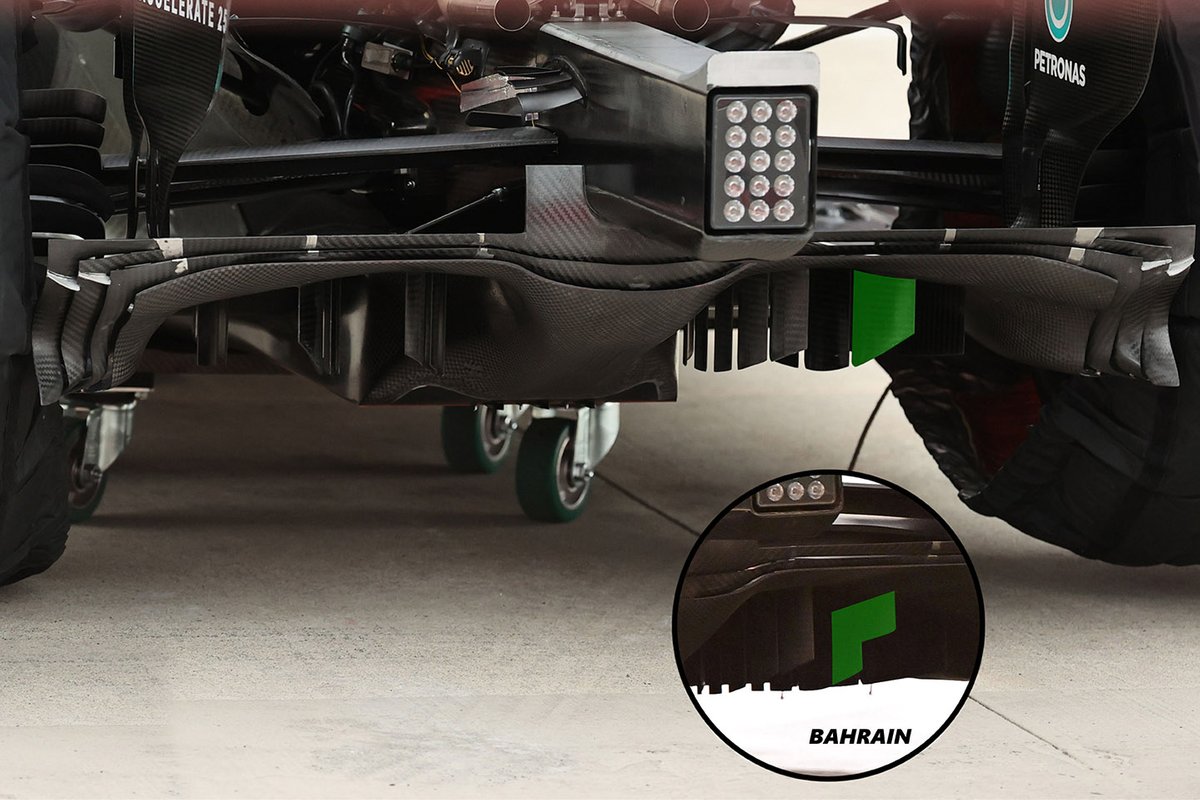

Mercedes W12 diffuser comparison
6th/.18th
Photo by: Giorgio Piola
Mercedes made a modification to the diffuser for the second race of the season and changed the shape of one of the vertical stakes (highlighted in green). As you can see, the L-shaped strake has been replaced with a full version.

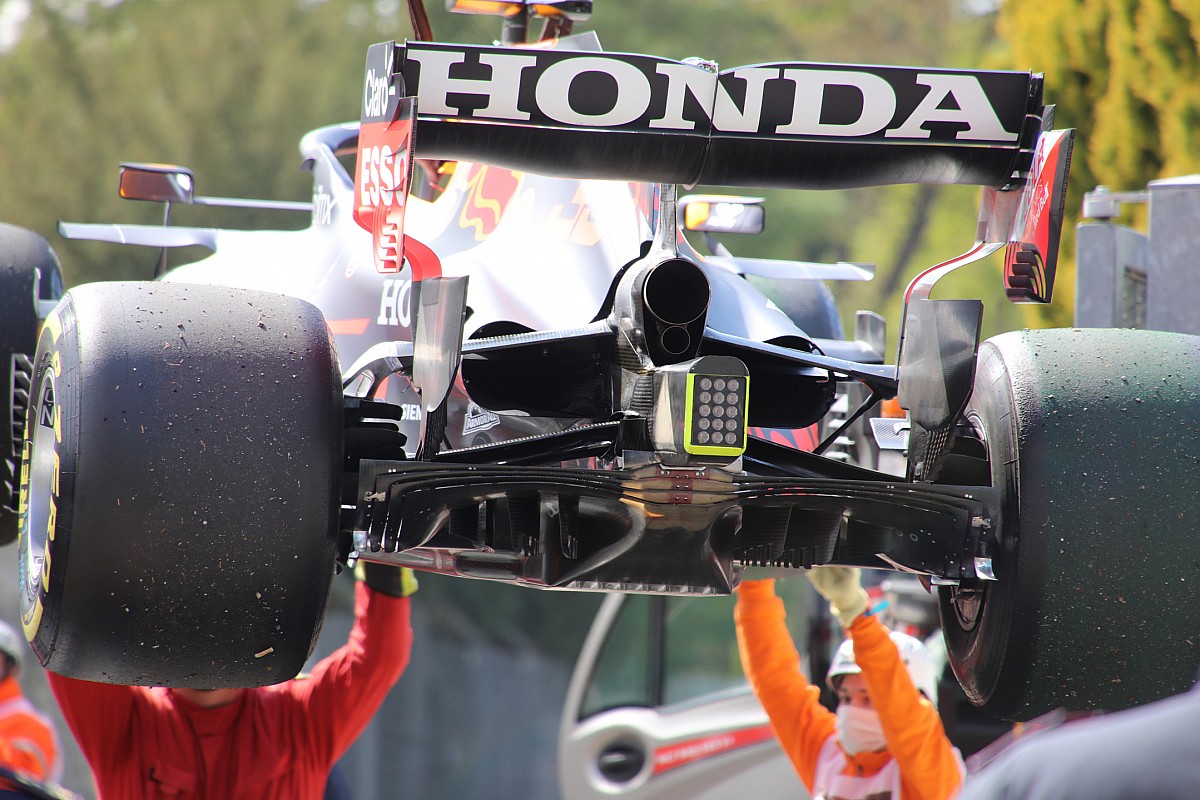

Red Bull Racing RB16B rear detail
7th/.18th
Photo by: Giorgio Piola
A great shot of the Red Bull RB16’s diffuser being lifted onto the recovery truck at Max Verstappen’s drive shaft failure.

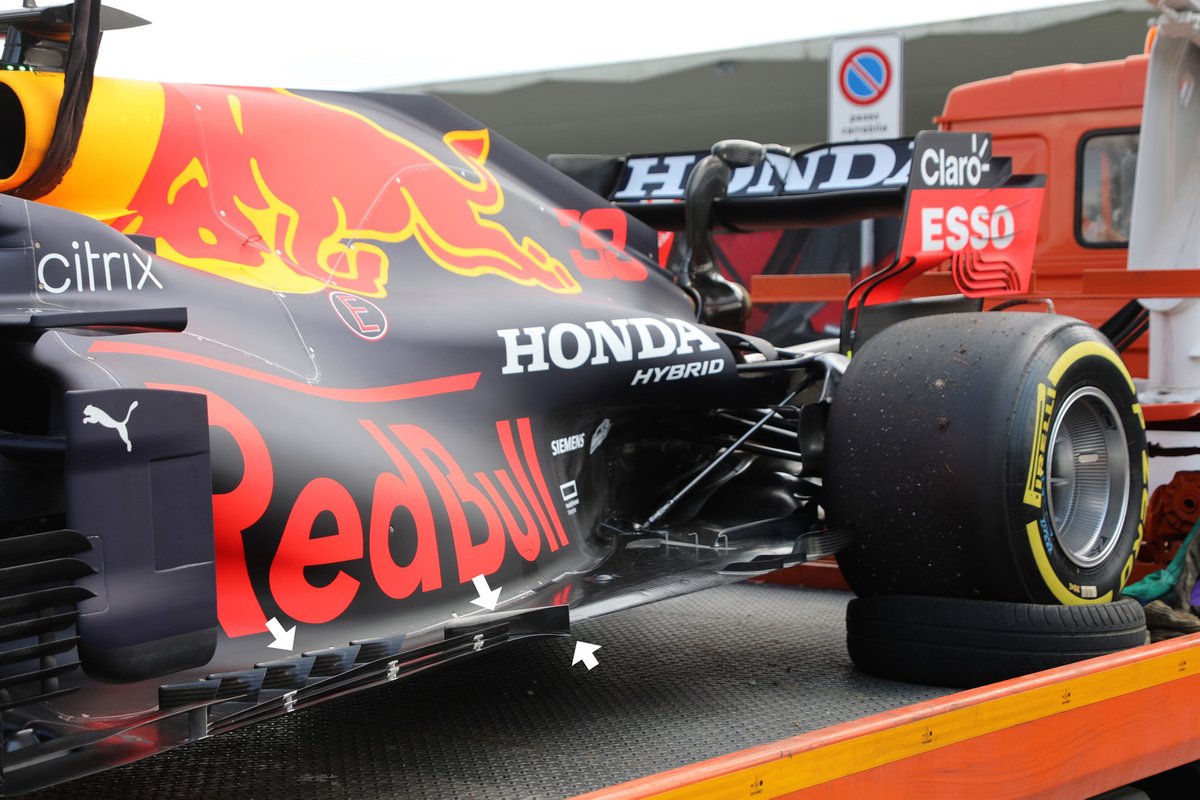

Red Bull Racing RB16B floor detail
8th/.18th
Photo by: Giorgio Piola
Highlighting the group of louvres that Red Bull uses on the RB16B to force the outside flow of the airflow.

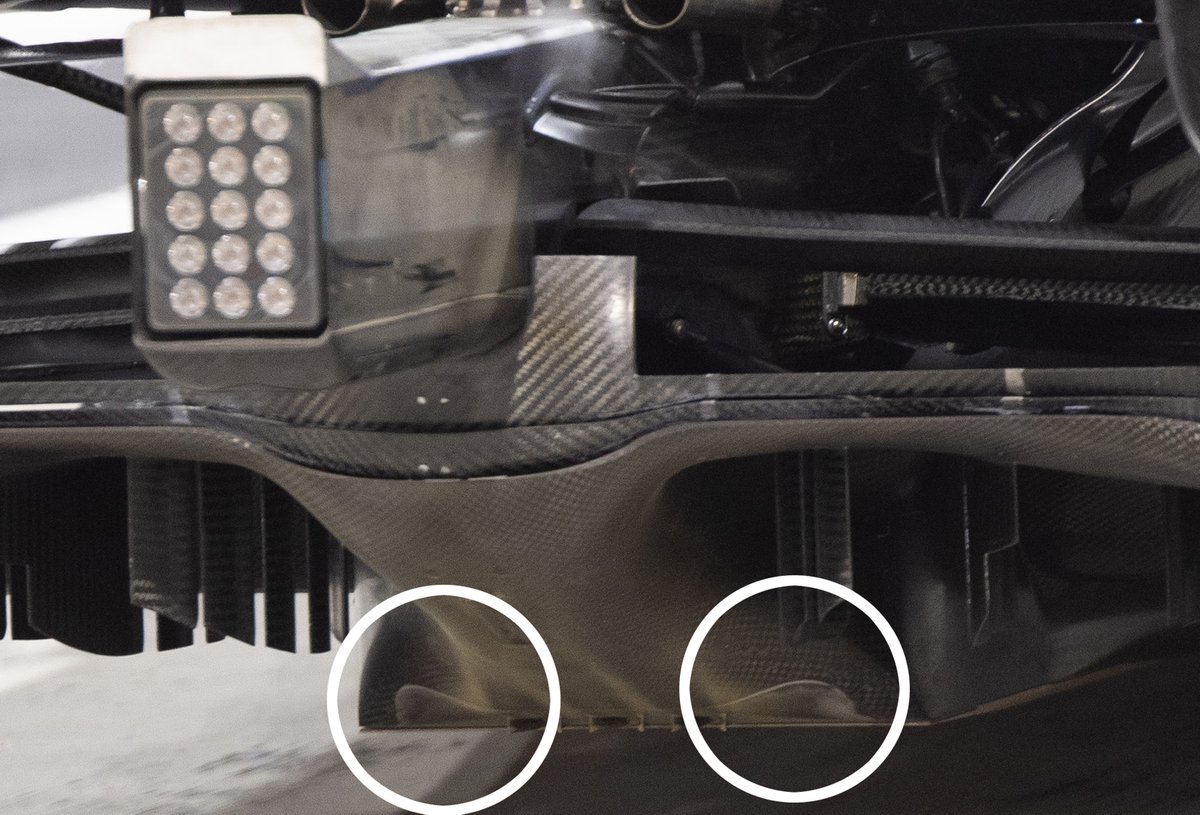

Mercedes F1 W12 diffuser detail
9/.18th
Photo by: Giorgio Piola
This is not new, but an interesting detail is the surface treatment in the transition zone of the diffuser on the Mercedes W12.

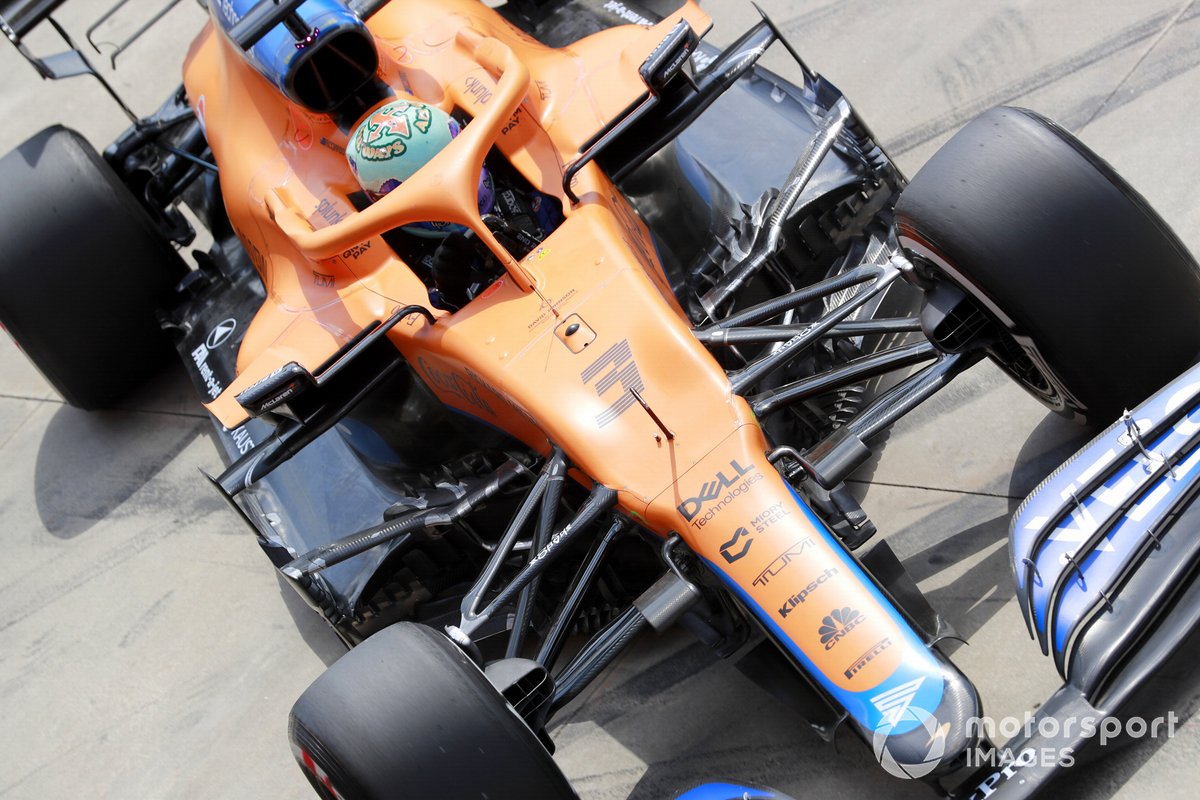

Daniel Ricciardo, McLaren MCL35M
10/.18th
Photo by: Steven Tee / Motorsport Images
A good overview of the McLaren MCL35M and the various surfaces of the bargeboard cluster.

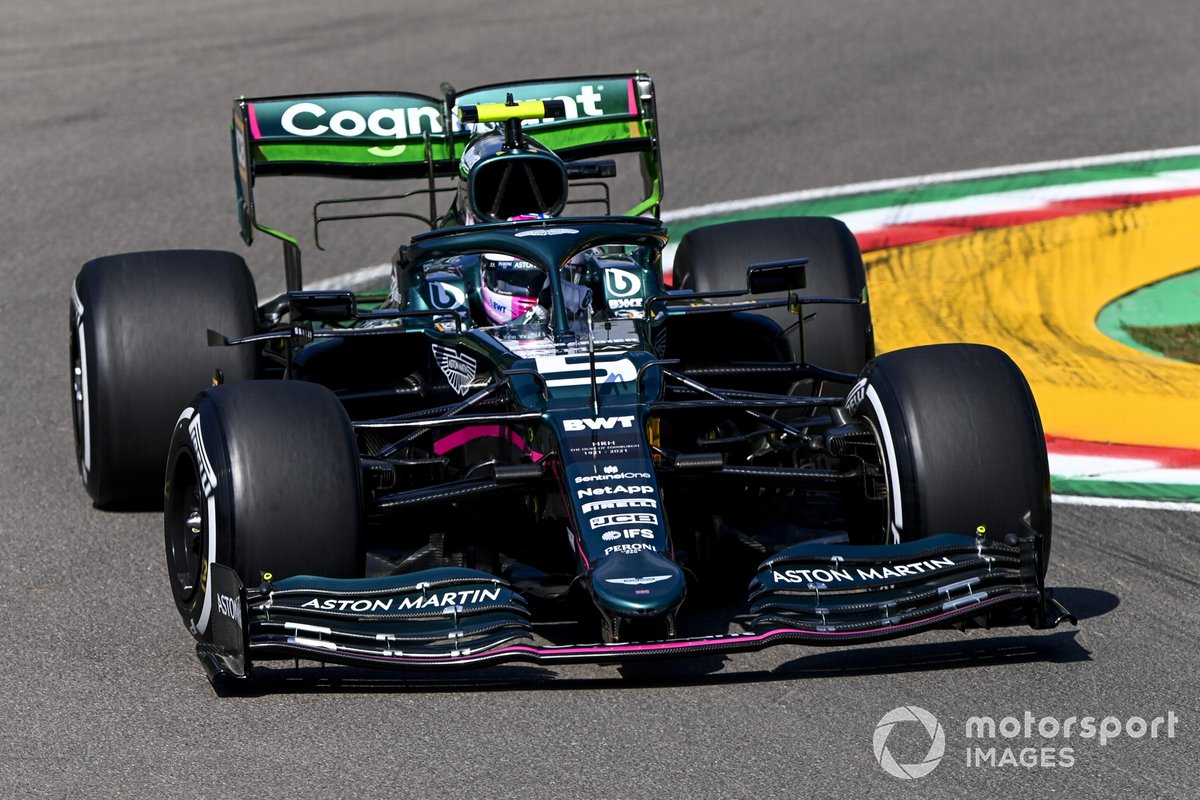

Sebastian Vettel, Aston Martin AMR21
11/.18th
Photo by: Mark Sutton / Motorsport Images
Flo-viz was painting on the spoon-shaped rear wing of the Aston Martin AMR21 as the team verified that the new design was performing as expected.

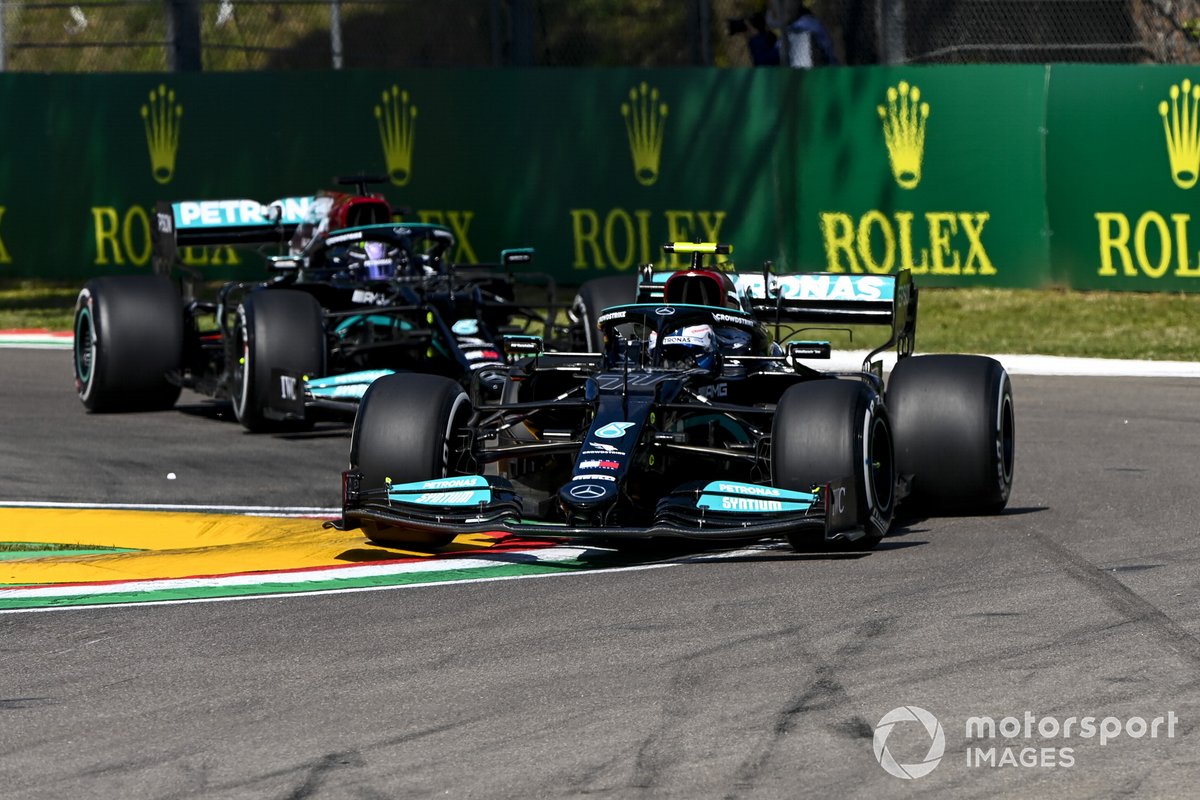

Valtteri Bottas and Lewis Hamilton, Mercedes W12
12th/.18th
Photo by: Mark Sutton / Motorsport Images
Mercedes is testing various rear wing configurations as Bottas has the two pillar arrangement while Hamilton has the one pillar arrangement.

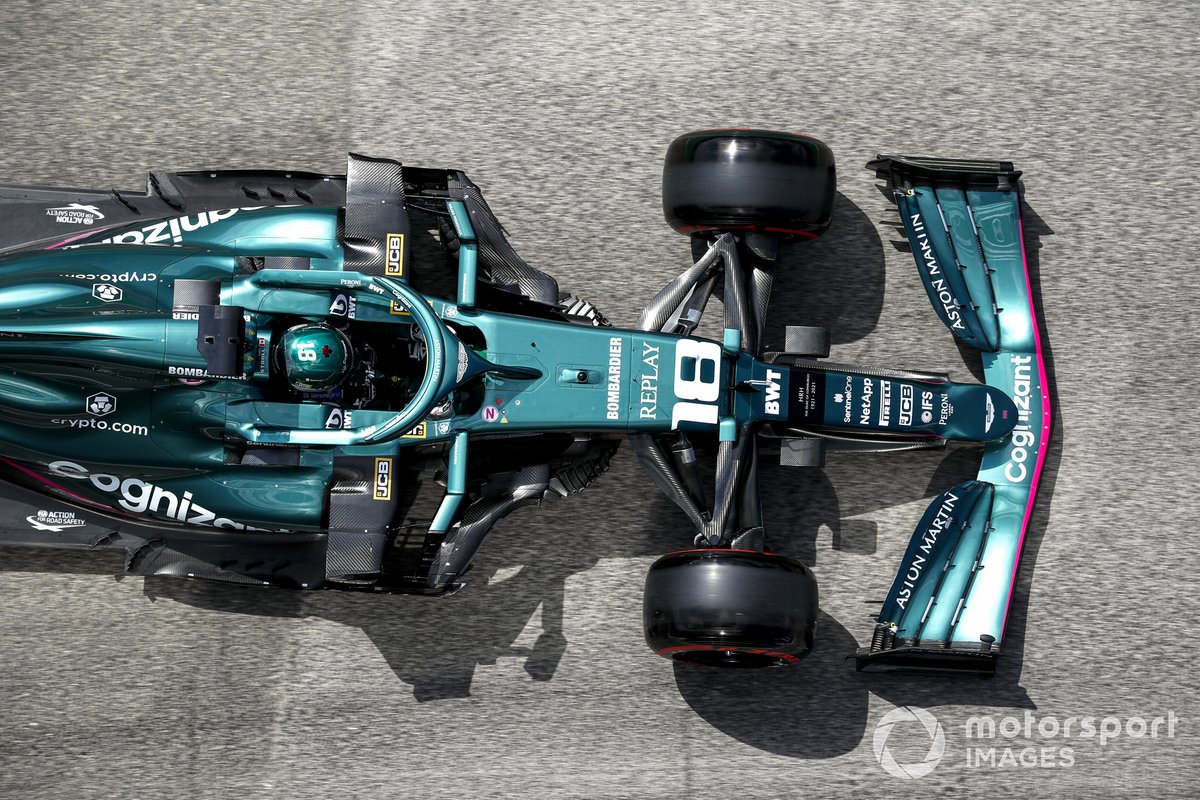

Lance Stroll, Aston Martin AMR21
13th/.18th
Photo by: Charles Coates / Motorsport Images
The Aston Martin AMR21 aerial photo shows how much ground the team cut away to change the angle of the ground. You will also find that the floor is contoured to further create the desired aerodynamic effect.

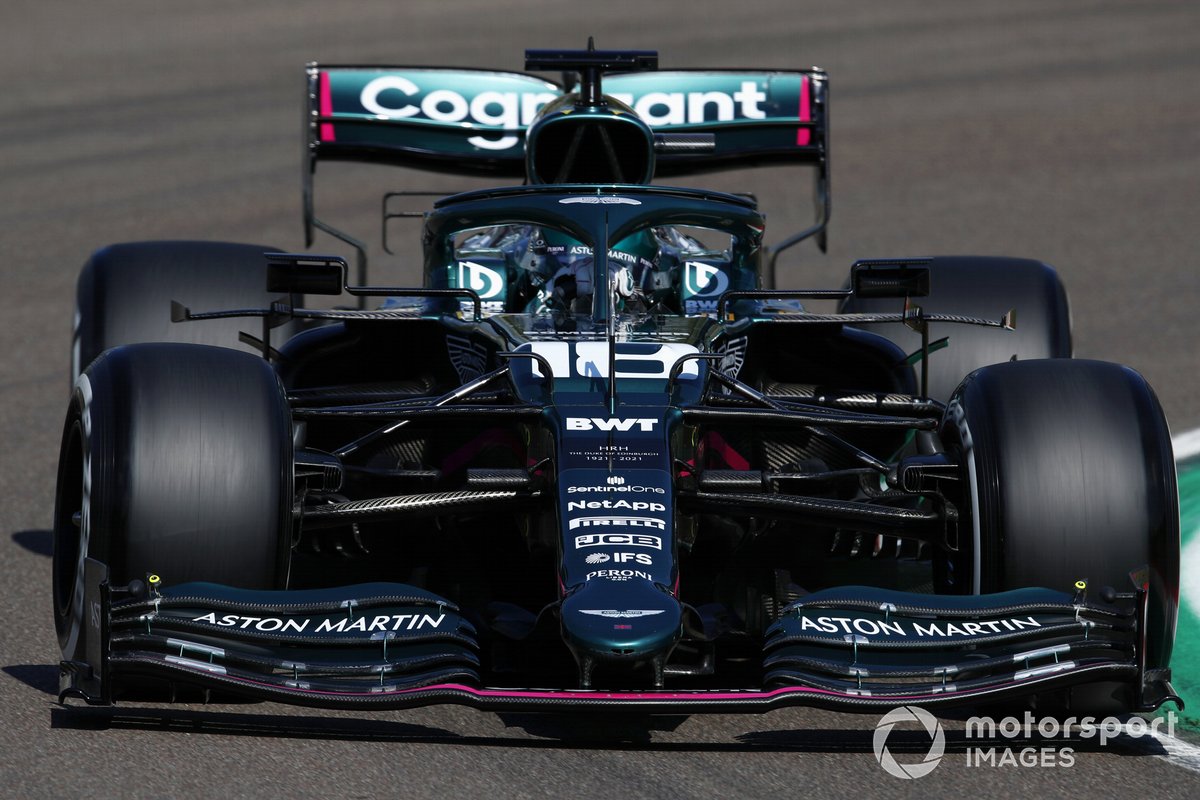

Lance Stroll, Aston Martin AMR21
14th/.18th
Photo by: Zak Mauger / Motorsport Images
Aston Martin has a new body with side pods and new wing mirror stems for the AMR21 in Imola to reduce the size of the intakes and improve aerodynamic performance.

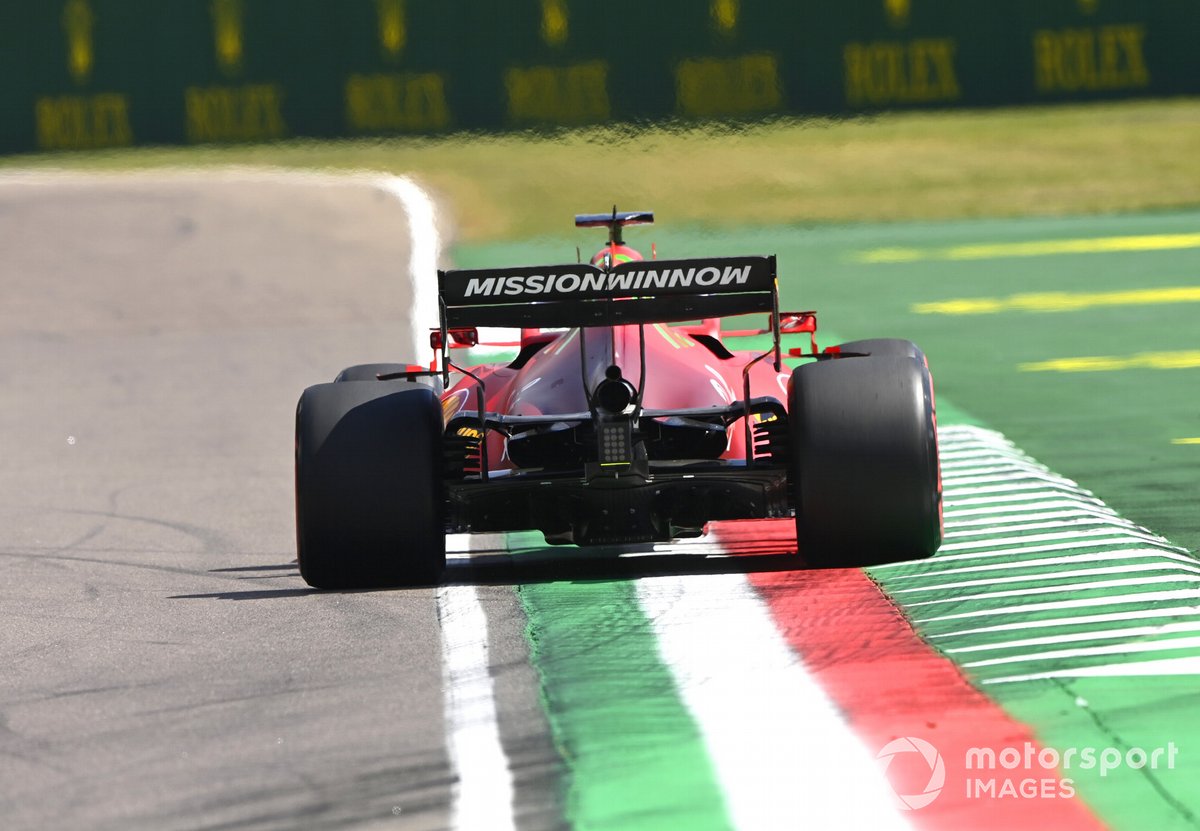

Charles Leclerc, Ferrari SF21
fifteen/.18th
Photo by: Mark Sutton / Motorsport Images
The Ferrari SF21 is much smaller than in Bahrain.

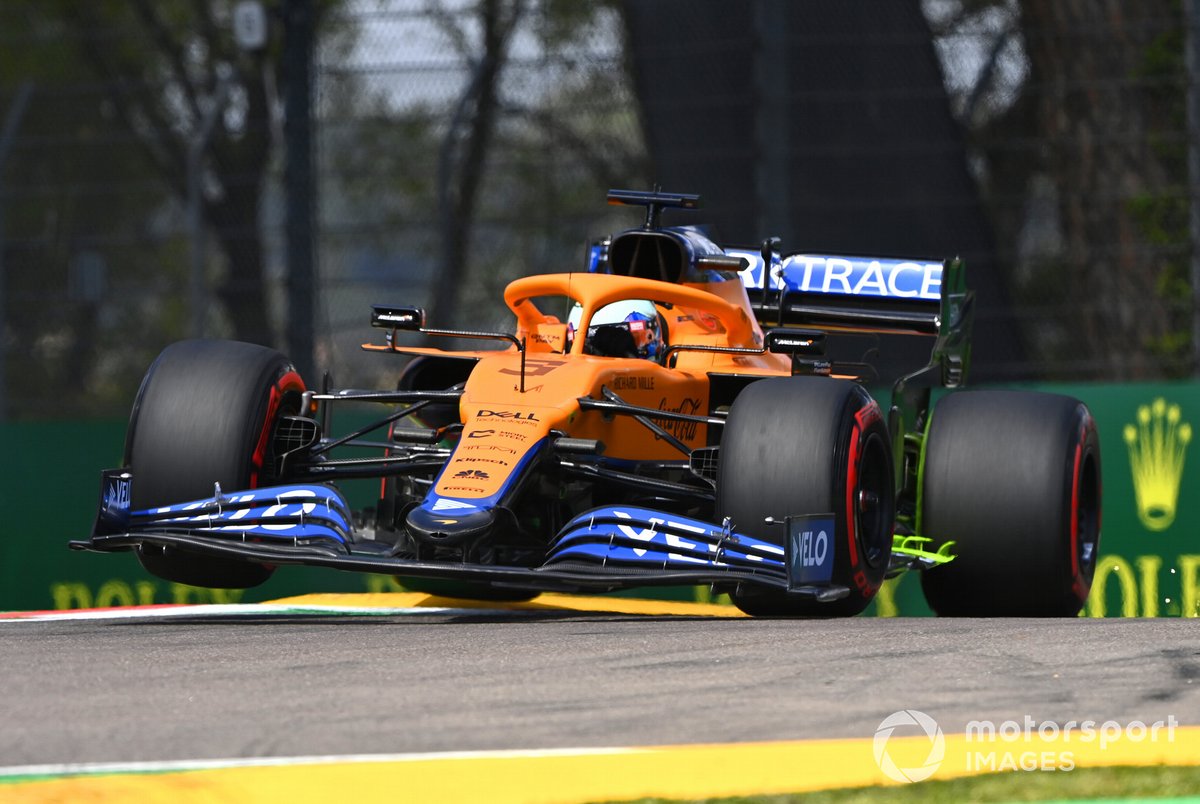

Daniel Ricciardo, McLaren MCL35M
16/.18th
Photo by: Mark Sutton / Motorsport Images
Flo-viz paints on the far corner of the McLaren as the team gathers visual confirmation that the new parts are working as expected in this region.

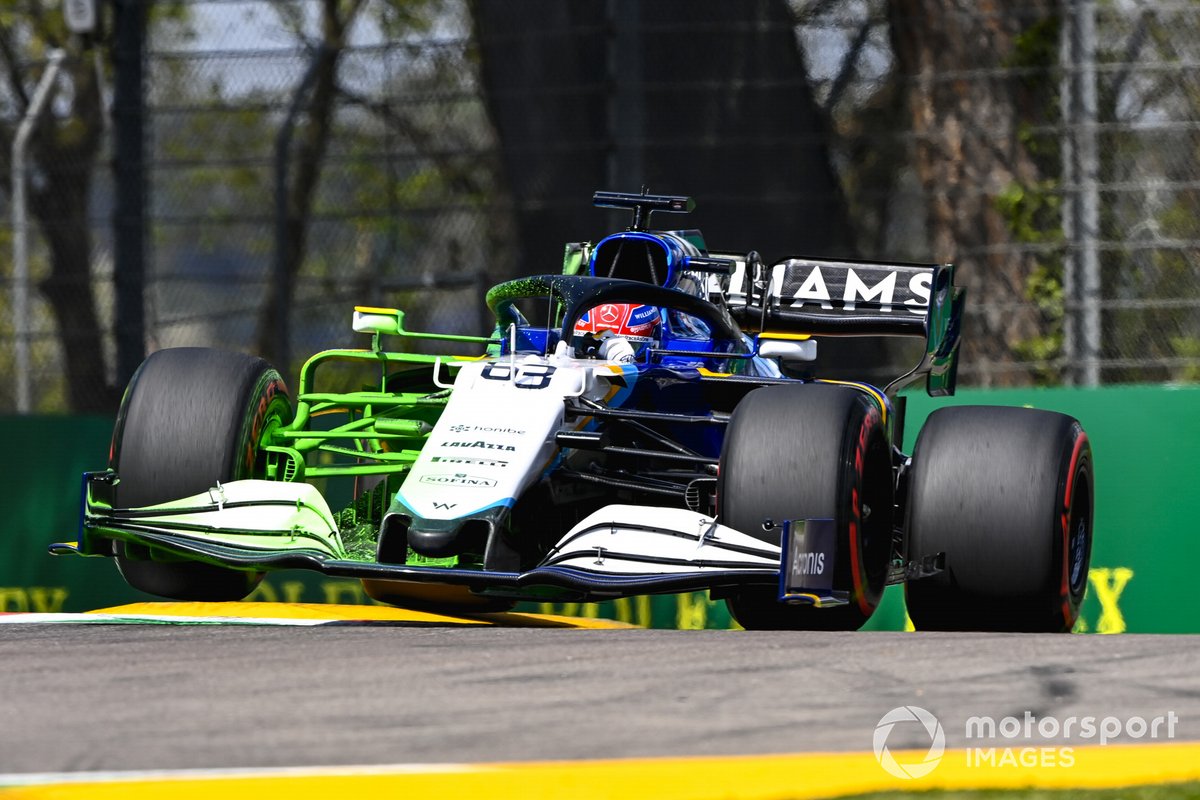

George Russell, Williams FW43B
17th/.18th
Photo by: Mark Sutton / Motorsport Images
Flo-viz on the front end of the Williams FW43B is helping the team identify issues with the correlation between the simulation tools and the real world environment and gathering information about their new front wing setup.

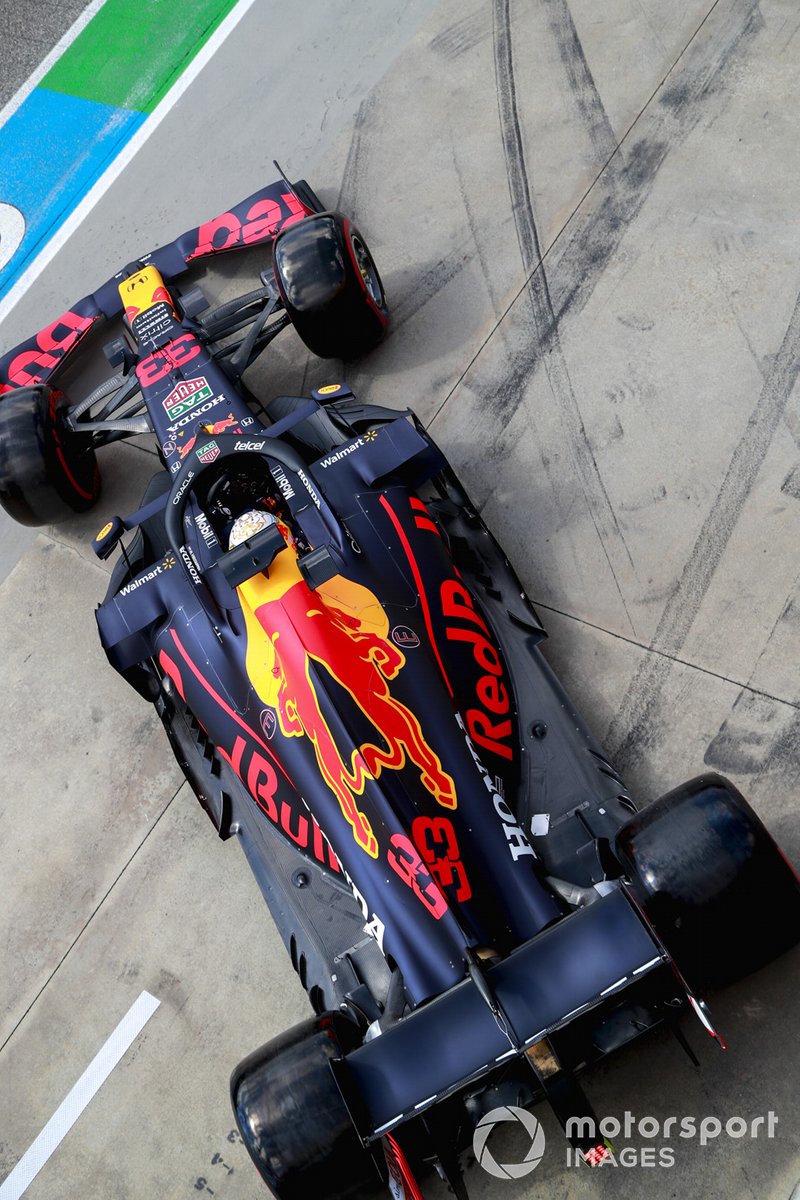

Max Verstappen, Red Bull Racing RB16B, leaves the garage
18th/.18th
Photo by: Steven Tee / Motorsport Images
The aerial photo of the Red Bull RB16B shows how narrow the body is and also highlights the fins mounted on the floor next to the bellies of the side pods.
